Solid AB with NaCl (Rock salt) structure - A atoms occupy corners of CCP- Resultant stoichiometry

1) In a solid 'AB' having NaCl structure, 'A' atoms occupy the corners of cubic unit cell. If all the face centered atoms along one of the axes are removed then the resultant stoichiometry (composition) of the solid is:

(IIT JEE 2001)

1) A₄B₃

2) AB₂

3) A₂B

4) A₃B₄

Logic & Solution:

Solid 'AB' has NaCl structure, otherwise known as Rock salt structure. Therefore, same type of atoms (for example 'A' atoms) are arranged in FCC pattern (in which all the 8 corners and all the 6 face centers are occupied) while other type of atoms ('B' atoms) occupy all the 12 edges as well as at the center of the unit cell.

Since, 'A' atoms are occupying the corners of unit cell, they must also be present at the face centers. The B atoms can be found at the 12 edges and at the center of the unit cell as shown below.

Therefore, before removing face centered atoms:

The number of 'A' atoms = (8 x 1/8) + (6 x 1/2) = 1 + 3 = 4 [there are 8 'A' atoms at the corners and 6 'A' atoms at the face centers]

The number of 'B' atoms = (12 x 1/4) + (1 x 1) = 3 + 1 = 4 [there are 12 'B' atoms at the edges and 1 'B' atom at the center of the unit cell]

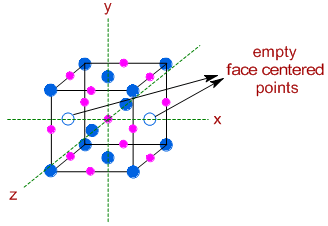

However after removing two face centered 'A' atoms along one of the axes (x axis) as shown below :

The number of 'A' atoms = (8 x 1/8) + (4 x 1/2) = 1 + 2 = 3 [there are now only 4 'A' atoms at the face centers]

The number of 'B' atoms = (12 x 1/4) + (1 x 1) = 3 + 1 = 4

Therefore the stoichiometry after removing these atoms is: A₃B₄

Note:

Each atom at the corner contributes 1/8th, and each atom at the face center contributes 1/2nd and each atom along the edge contributes 1/4th to the unit cell.

Conclusion:

The correct option is '4'.
